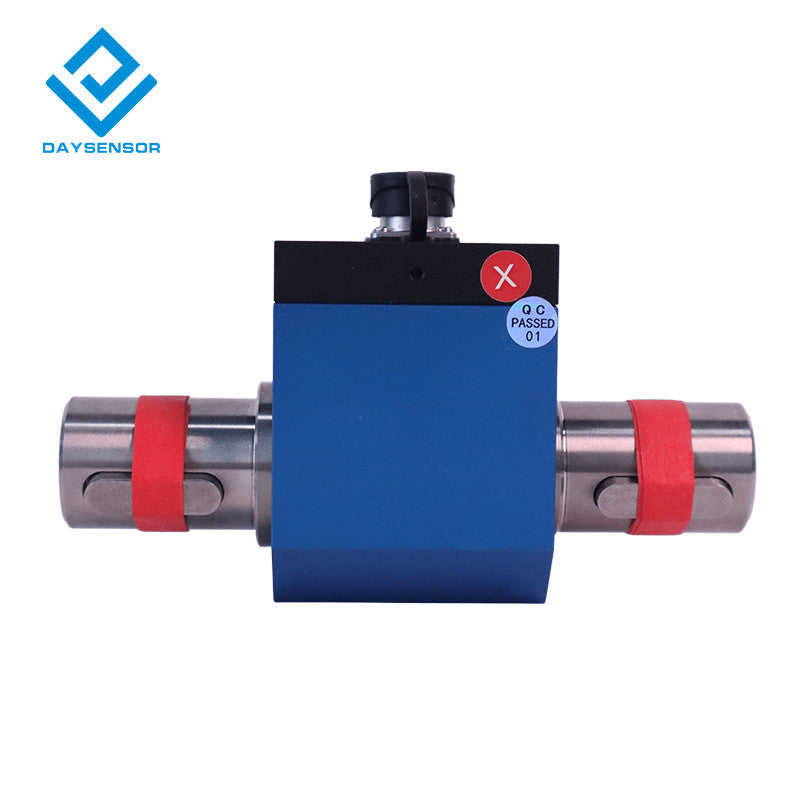

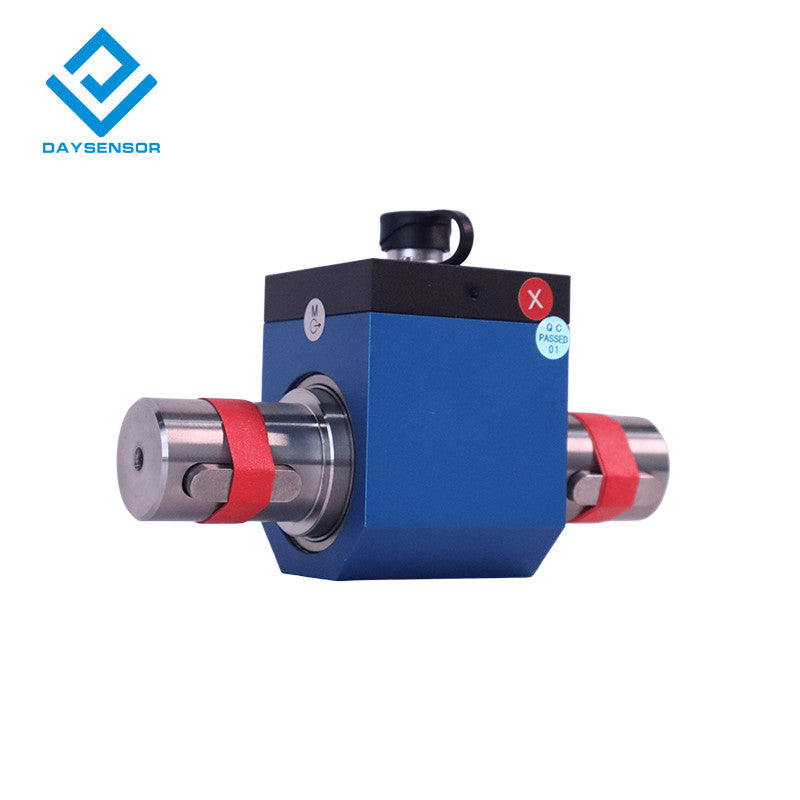

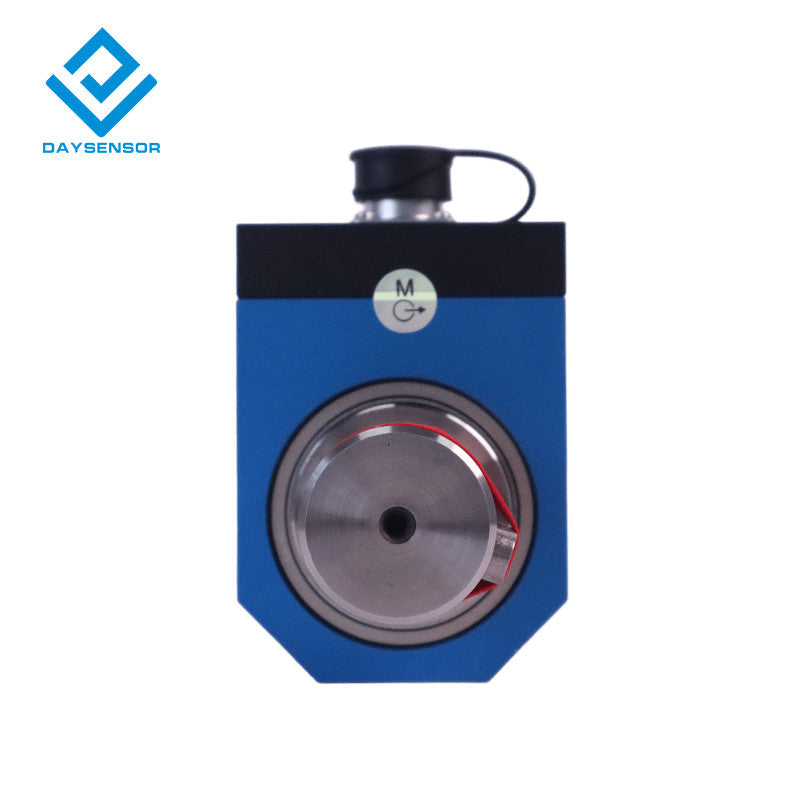

DYN-206 DAYSENSOR Dynamic Torque Sensor Torque Rotation Torque Moment

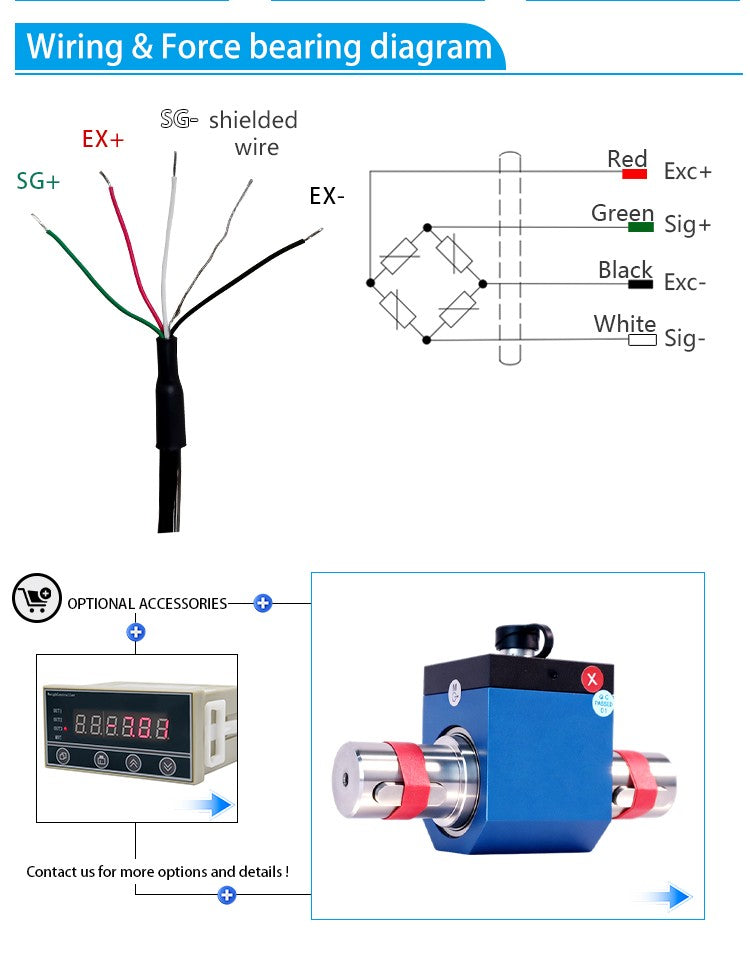

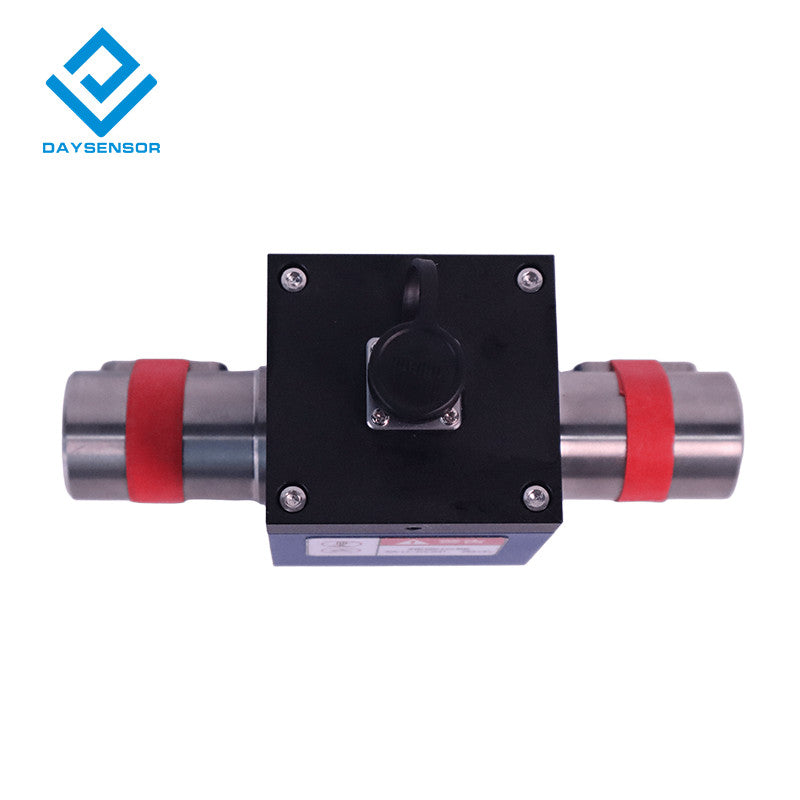

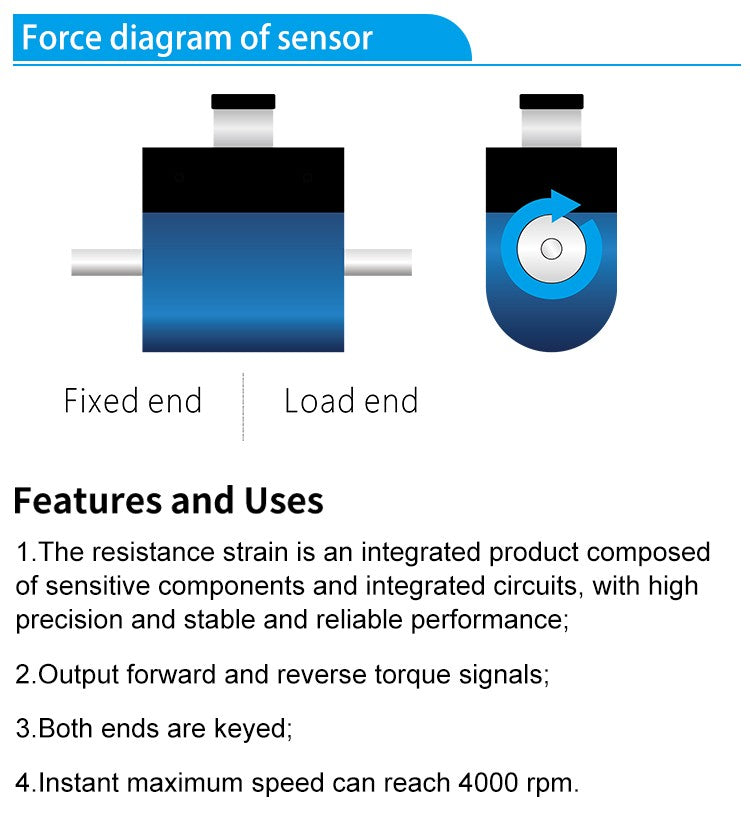

DAYSENSORrotary torque transducer with waterproof circular connector and 3m cable can measure both forward and reverse torque.
【Customer First 】You will be enjoyed to get free tech support on how to choose, how to wire, how to commissioning with DAYSENSOR professional engineers. If you have any issue about the product or service, please don't hesitate to consult us.

**Specifications**
Brand	DAYSENSOR
Wanranty	3 Years
Measurement Range	0-800N.m
Accuracy	0.05%F.S (linearity + hysteresis )
Repeatability	0.05%F.S
Input Impedance	350±10Ω
Output Impedance	350±10Ω
Sensitivity	2.0±0.05mV/V
Safety Overload	150%F.S
Creep	±0.05%F.S/30min
Zero Output	±0.5%F.S
Temperature Effect on Zero	±0.05%F.S/10℃
Temperature Effect on Output	±0.05%F.S/10℃
Operating Temperature	-20℃~+80℃
Protection Class	IP66
Cable Length	3m（ Φ5）
Material	Stainless steel
