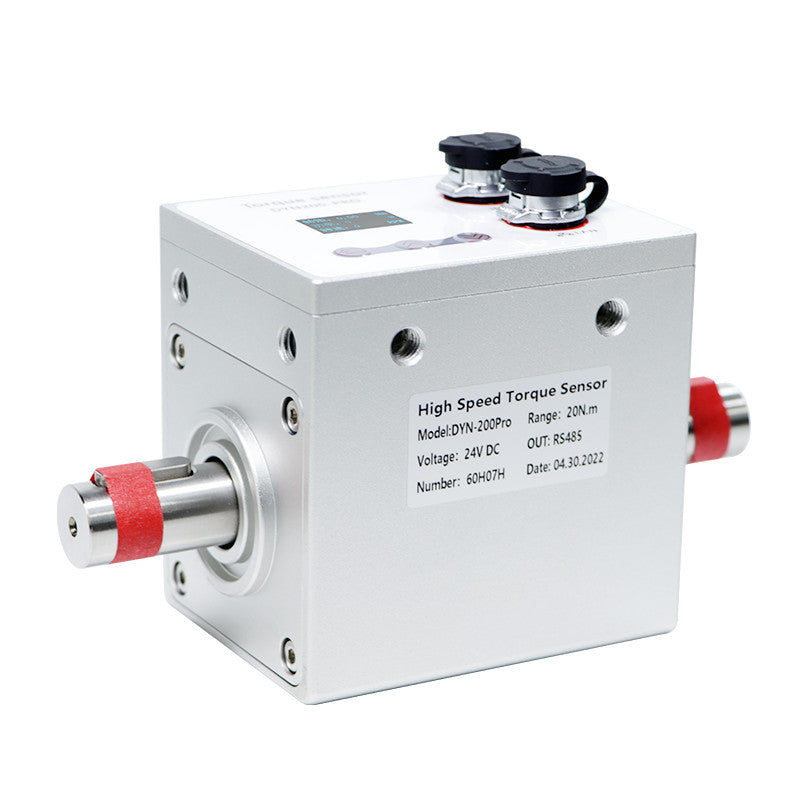

DYN-200Pro DAYSENSOR Dynamic Torque Transducer High Accuracy for Indus

This non‑contact high‑speed rotary torque sensor is designed for accurate dynamic shaft torque measurement, with a 0‑10000 N·m measuring range and 0‑5V analog output, perfectly suited for industrial dynamic force testing and real‑time monitoring.

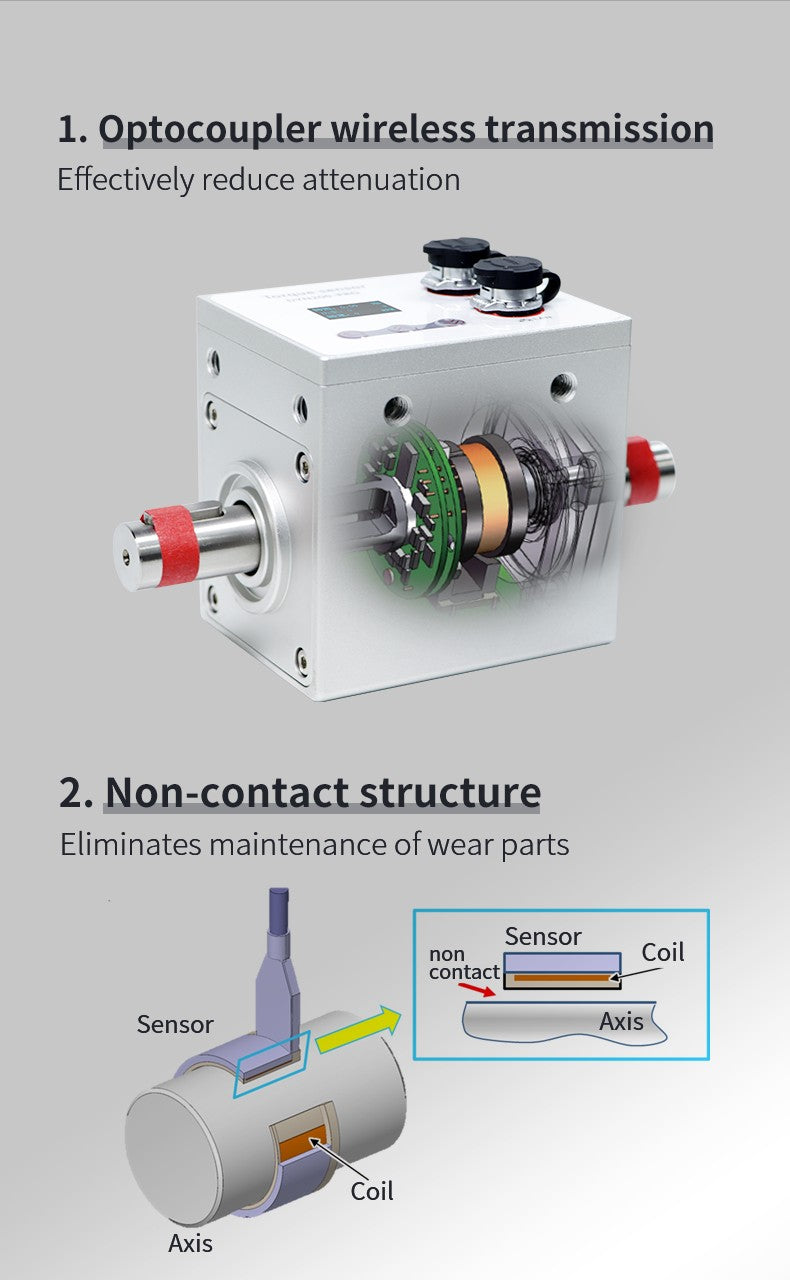

Adopting non‑contact structure, this torque transducer eliminates the need for routine maintenance and frequent part replacement, delivering long‑term stable operation without wear‑related downtime. It achieves ultra‑high measurement precision up to 1/10000 and excellent zero‑point stability, supporting highly accurate detection even for tiny torque values.

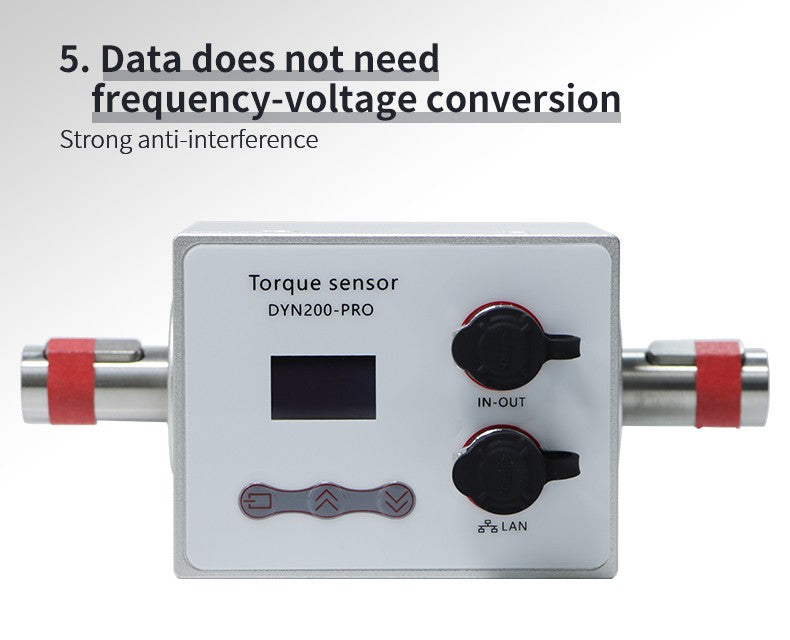

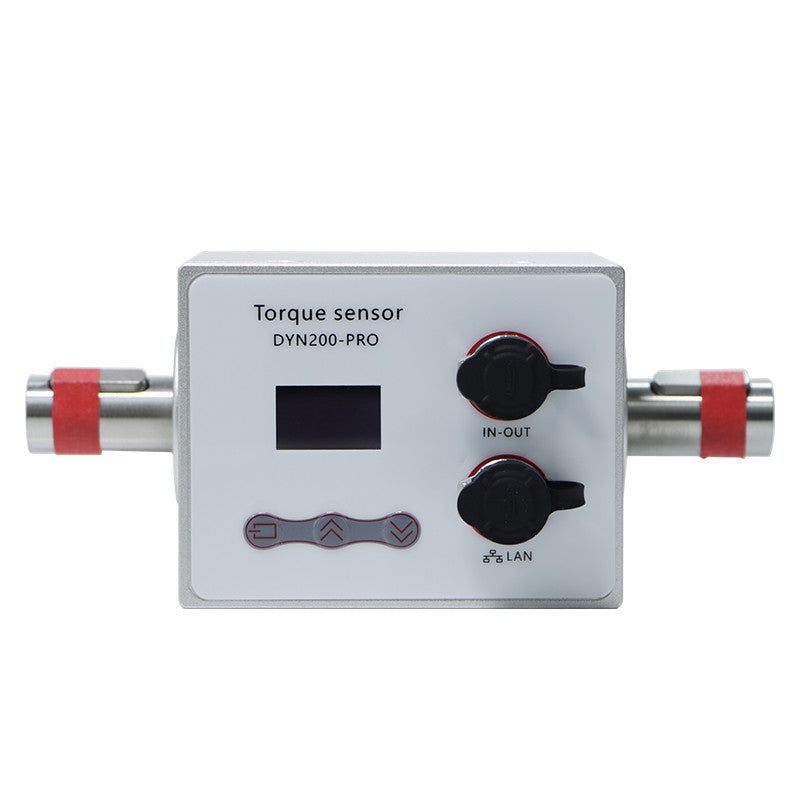

With an ultra‑low starting torque of 0.00001 N·m, the sensor ensures consistent and reliable readings from static measurement to high‑speed rotation scenarios. No external circuit is required, as it directly outputs standard voltage, current or RS485 signals for easy connection with PLCs and professional instruments to collect torque and speed data. 4、Equipped with an integrated LCD screen, it displays real‑time torque, power and rotational speed values clearly, enabling intuitive on‑site monitoring and quick data checking. This low‑maintenance, high‑precision torque sensor provides dependable performance for a wide range of industrial dynamic torque and speed measurement applications.

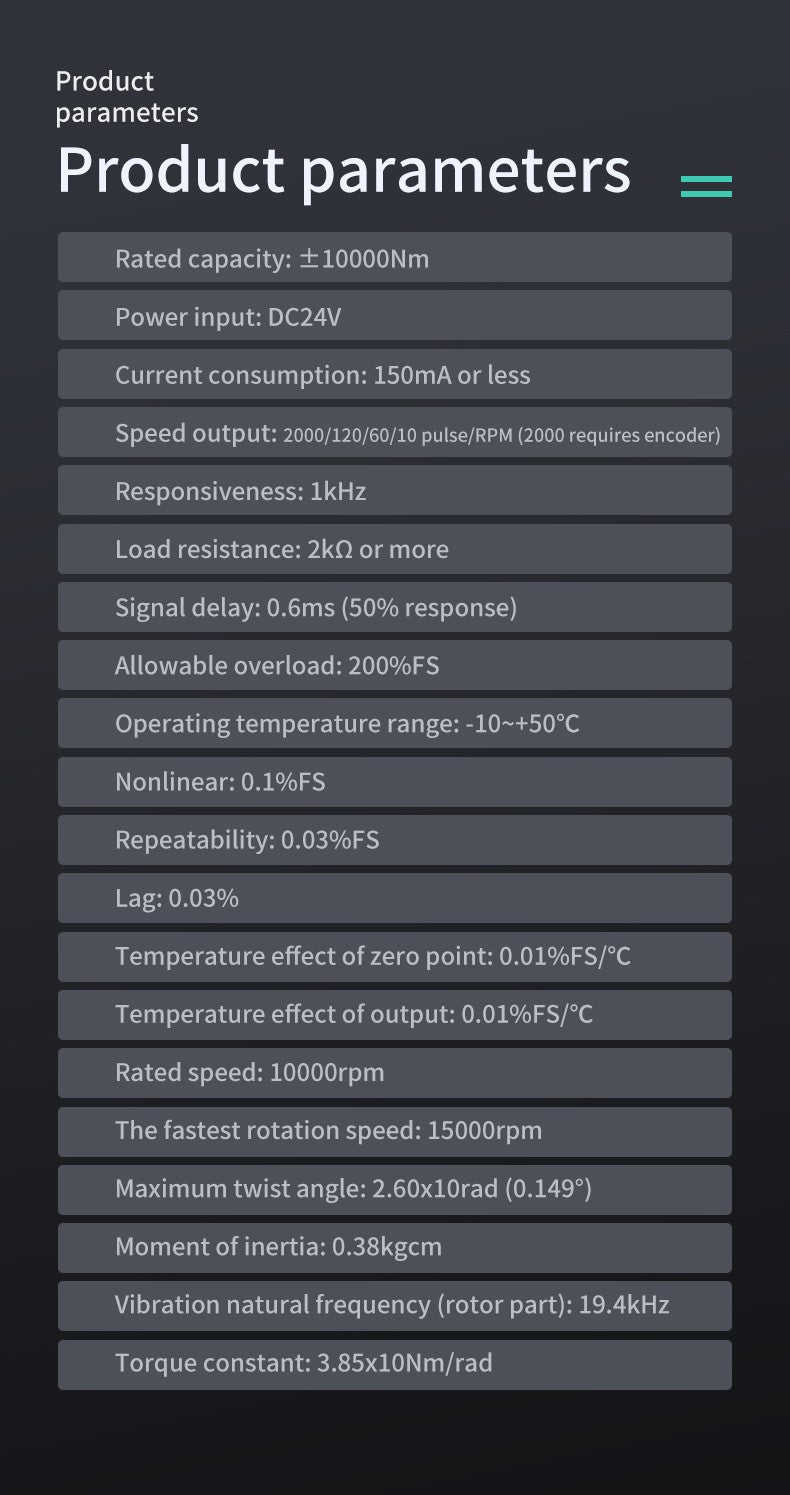

Specification:

Item Type: Dynamic Torsion Sensor
Rated Capacity: ± 30N.m
Power Input: DC24V
Current Consumption: Below 150mA
Torsion Output: ± 5VDC; 0-10V; 4-20mA
Speed Output: 60 pulses / rev
Response Performance: 1kHz
Load Resistance: 2kΩ or more
Signal Delay: 0.6ms (50% response)
Allow Overload: 200% FS
Operating Temperature Range: -10 ~ + 50 ℃
Non-linearity: 0.1% FS
Repeatability: 0.03% FS
Lag: 0.03%
Temperature Effect Of Zero Point: 0.01% FS / C
Temperature Effect Of Output: 0.01% FS / C
Rated Speed: 10000rpm
The Fastest Rotation Speed: 15000rpm
Maximum Twisted Angle: 2.60 × 10rad (0.149 °)
Moment Of Inertia: 0.38kgcm
Vibration Natural Frequency (rotor Part): 19.4kHz
Torsion Constant: 3.85 × 10Nm / rad

Package List:

1 x Sensor

1 x Line
