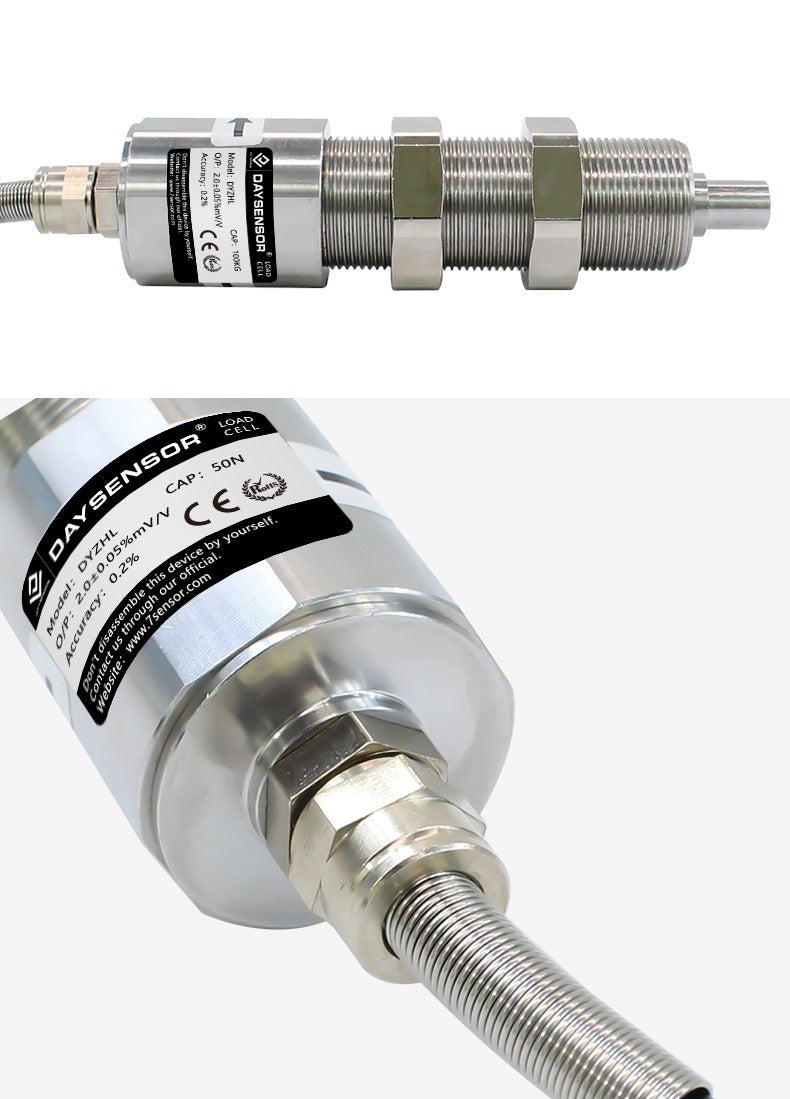

Continue shoppingDYZHL DAYSENSOR Tension Sensor 112lb High Accuracy Stainless Steel Industrial Tension
Increments of 1
Minimum of 1
Maximum of
3Low stock
3In stock, ready to ship
Sale price
$99.99
-0%
Regular price
$99.99
Regular price
$99.99
Unit price
per
Couldn't load pickup availability
Fast Shipping
Free Returns
Best Deals
Get notified by email when this product becomes available
Have a question?
Description

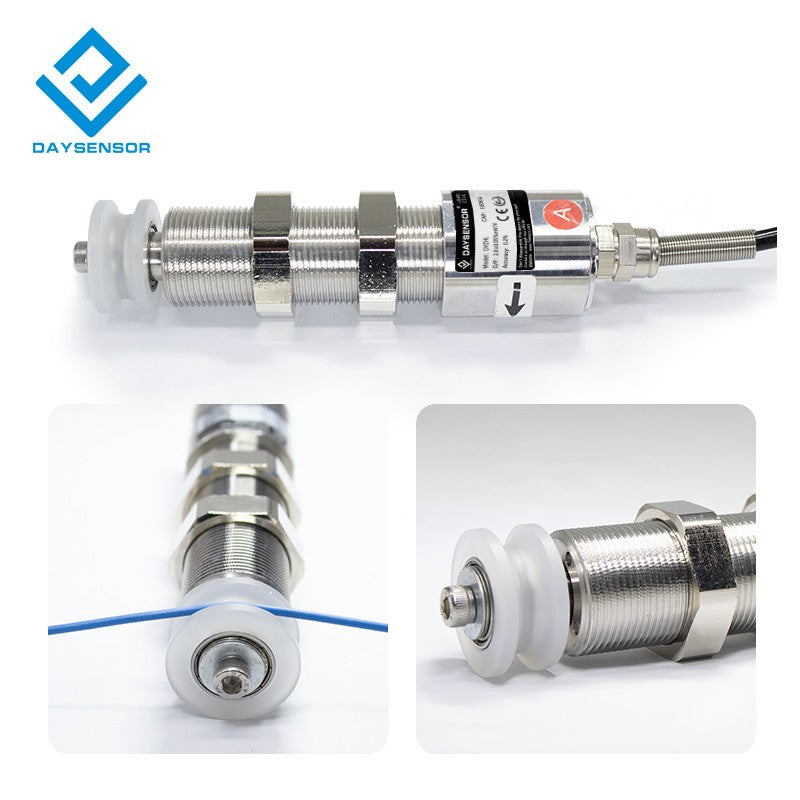

- Wide Capacity Range — Tension sensor for wire rope available in 0-2.3lb， 4.6lb，11lb，23lb，46lb，up to 112lb, ideal load cell force sensor for cable wire, yarns, chemical fibers, and rope tension measurement.
- Fast Response Frequency — Force sensor for wire rope with 10kHz dynamic response, captures rapid tension changes in winding, textile, packaging, and cable production applications.
- High Accuracy & Stable Performance — Wire rope load cell designed with ±0.1% F.S. accuracy, excellent repeatability and low hysteresis, providing precise force measurement for industrial automation and quality control.
After purchasing DAYSENEOR load cell
Use with a special digital panel meter to obtain readings directly, or a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

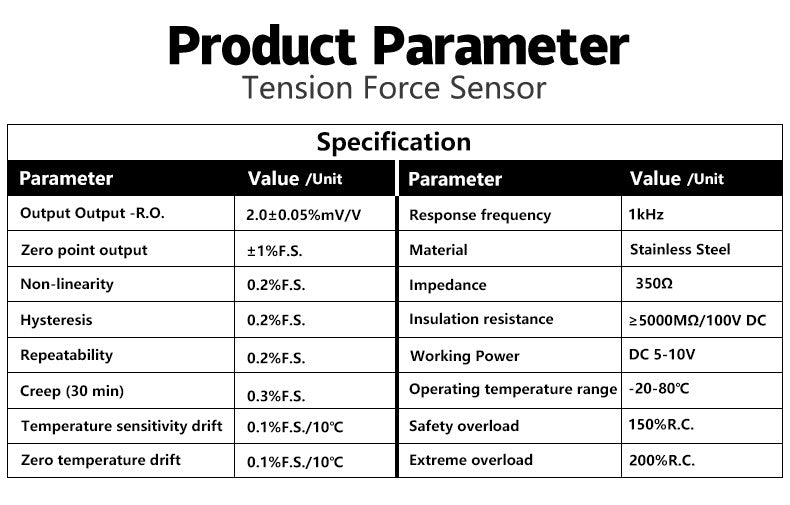

| Brand | DAYSENSOR |
| Wanranty | 3 Years |
| Measurement Range | 2.3lb-112lb |
| Accuracy | 0.2%F.S (linearity + hysteresis ) |
| Repeatability | 0.2%F.S |
| Input Impedance | 350±10Ω |
| Output Impedance | 350±10Ω |
| Insulation Resistance | ≥5000MΩ |
| Sensitivity | 2.0±0.05mV/V |
| Safety Overload | 150%F.S |
| Creep | ±0.3%F.S/30min |
| Zero Output | ±1%F.S |
| Temperature Effect on Zero | ±0.1%F.S/10℃ |
| Temperature Effect on Output | ±0.031%F.S/10℃ |
| Operating Temperature | -20℃~+80℃ |
| Protection Class | IP66 |

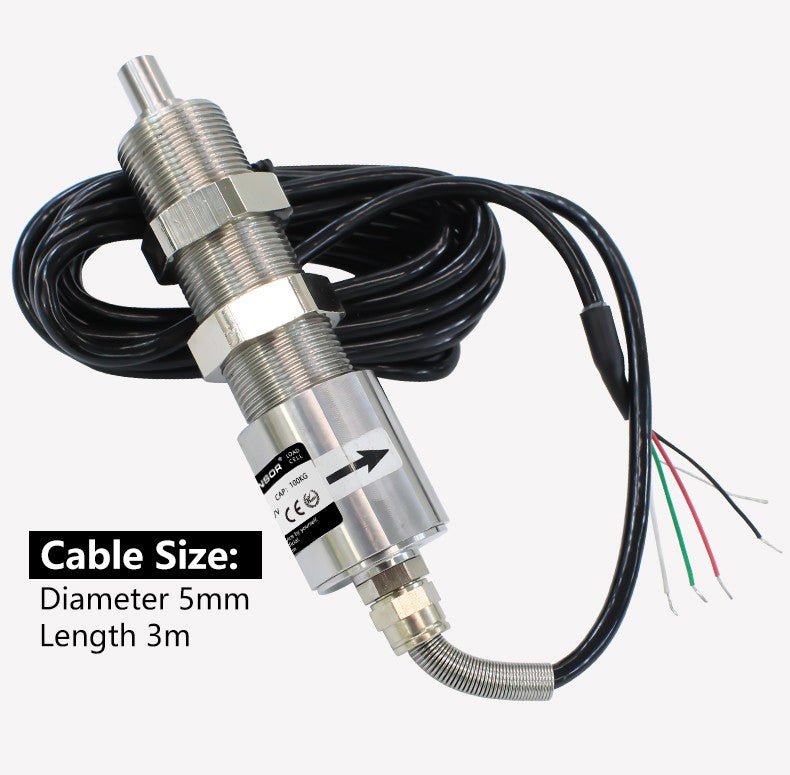

| Cable Length | 3m（ Φ5） |
| Material | Stainless steel |
| Package List | 1*Tension Sensor |

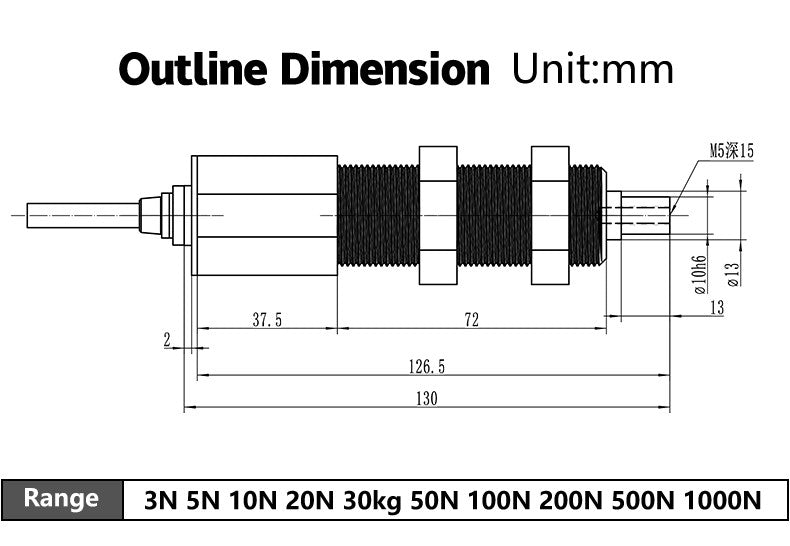

Dimension

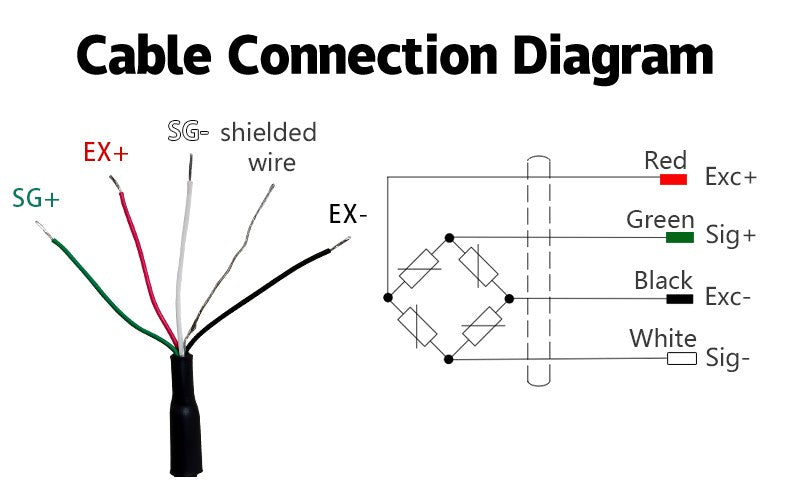

Wiring Method

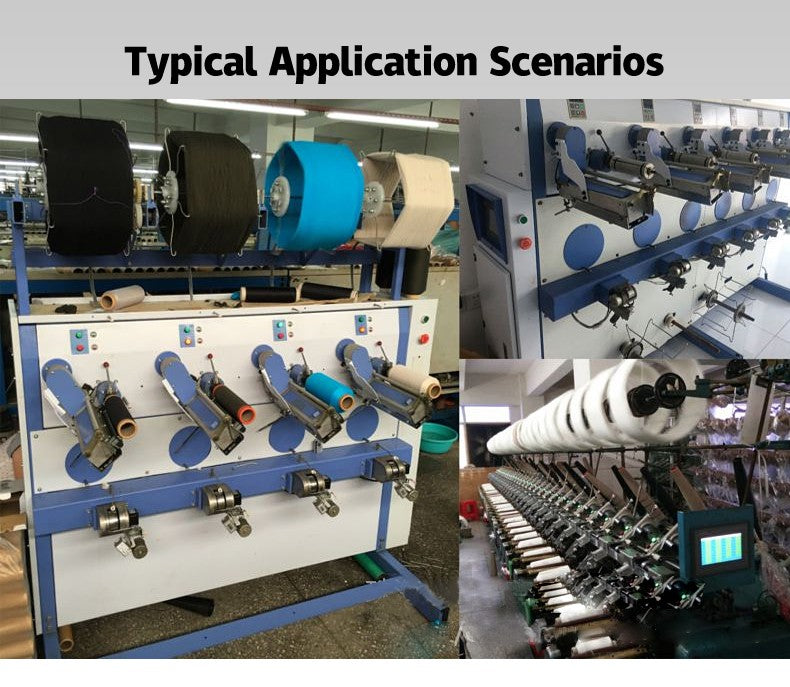

Application
ABOUT DAYSENSOR
